To ensure the stability and efficiency of the five axis machining program, SurfMill9.5 software, as a CAM software specifically designed for five axis precision machining, has comprehensive five axis process development capabilities. It provides multiple five axis programming strategies and tool axis control methods, which can meet the high-quality and efficient machining requirements of various complex parts, and improve the production efficiency of five axis CNC equipment.
Aerospace key component processing solutions
Specialized machining strategies for aerospace components, such as disc shaft machining, turbine disc machining, ISO S-hole machining, landing gear machining, providing one-stop total solutions such as unloading - milling flat surfaces - rough milling grooves - fine milling grooves - machining holes - milling external profiles - deburring, and so on.

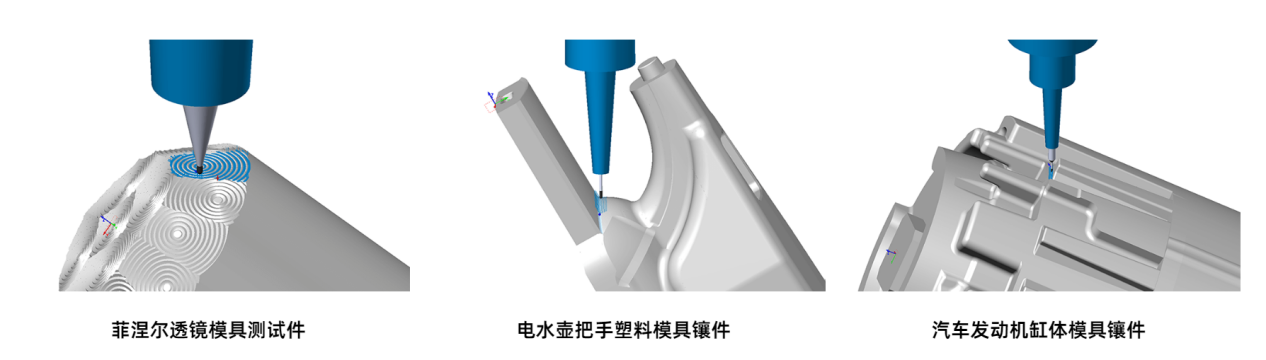

模具五轴清根方案——自动生成合理的多轴清根路径
SurfMill9.5软件中只需设定刀轴倾斜角度范围便能自动搜索出不同部位适合的刀轴方向，进而生成安全光顺的五轴清根路径。

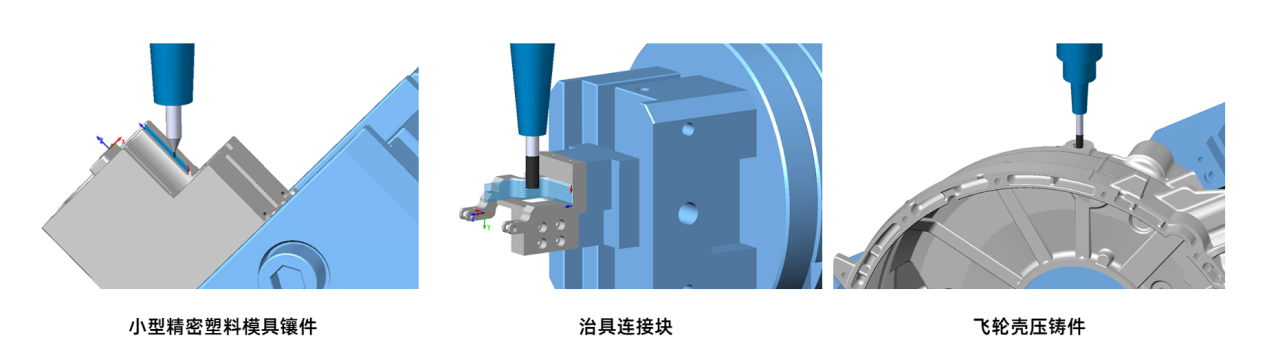

五轴定位加工方案——与三轴编程一样简单
SurfMill9.5软件提供的多轴定位加工方案，可以按照标准化流程快速完成各个坐标系下的路径生成，让具备三轴基础的人员只需简单培训就能完成五轴定位加工方案开发。

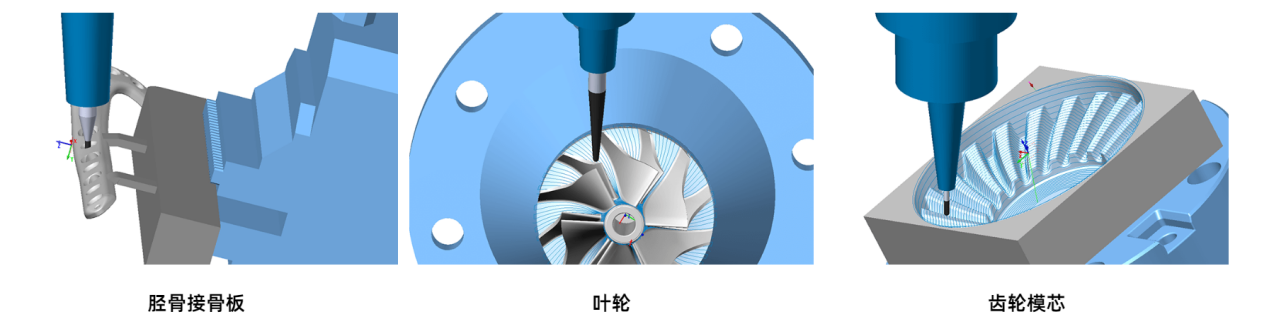

五轴联动加工方案——为复杂零件提供高质量五轴路径
SurfMill9.5具备专业的五轴联动编程策略和灵活的刀轴控制方式，能够快速生成高质量的五轴联动加工路径，完成复杂的零件加工。

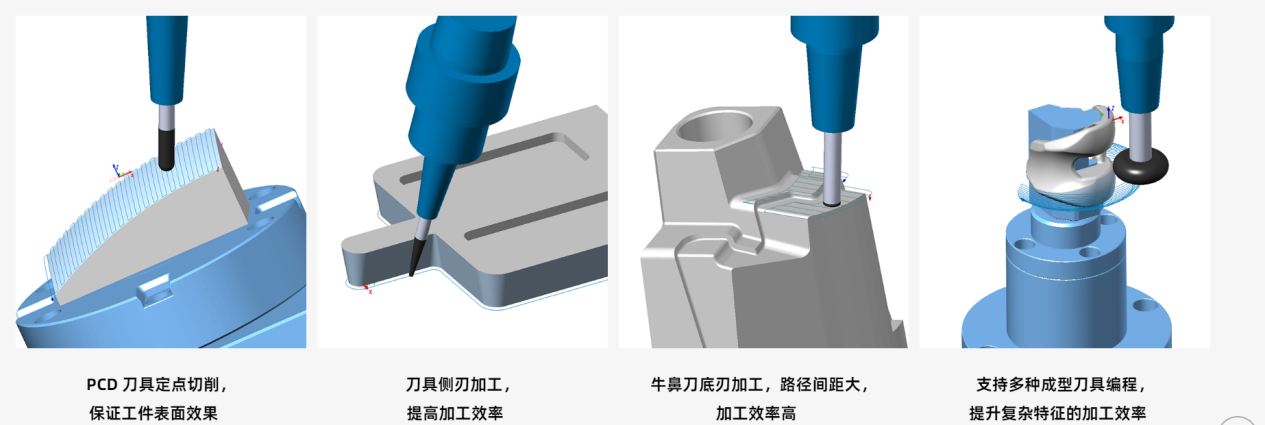

丰富的刀轴控制方式，发挥刀具切削性能
五轴路径分析功能，实现高质量表面加工

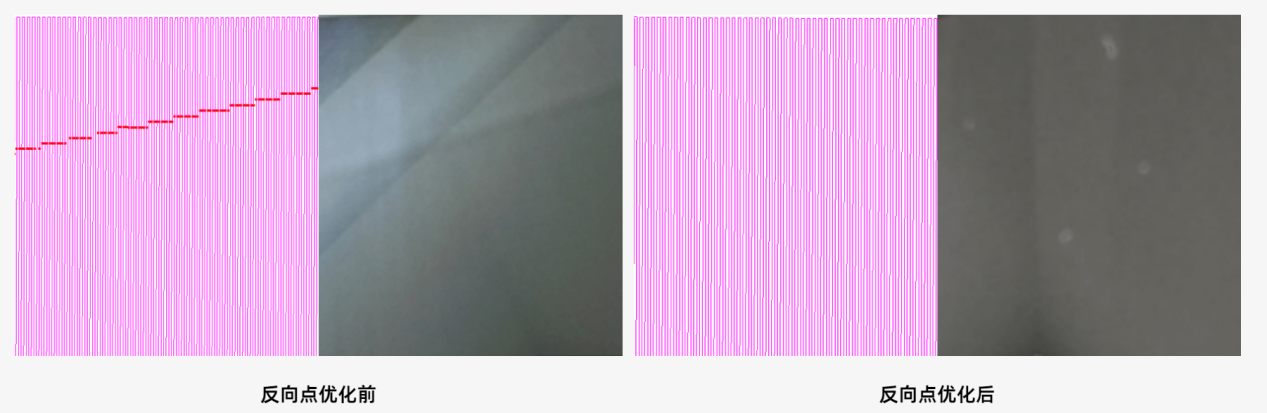

反向点优化，消除五轴加工路径反向点
加工效果

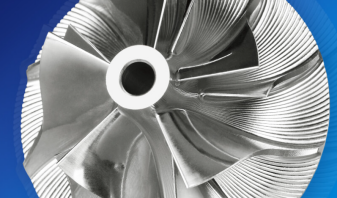

叶片刀纹一致均匀，无明显振纹，不平衡量＜0.3gmm；
运用了SurfMill9.5软件叶轮侧铣加工策略后，在保证高表面光洁度的基础上，使得单件加工时间缩短至9min11s。
