In the mineral processing industry, grinding operations are the most energy-consuming and cost-intensive link in the entire process, with energy consumption usually accounting for 40% to 70% of the total energy consumption of mineral processing, or even higher[superscript:3]. Therefore, improving grinding efficiency and reducing energy consumption have always been the main theme of the development of mineral processing technology. At the same time, in recent years, with the increasing complexity of ore properties and the rising mining costs, the large-scale development of grinding mills and energy-saving technologies have advanced at an unprecedented pace, becoming the two core driving forces leading the technological innovation of mineral processing plants.

Taking the super-large ISAMILL® (3000-50000L) developed by Puhler Nano as an example, this equipment not only breaks the foreign technological monopoly, but also provides a brand-new solution for the industry's large-scale development, energy conservation and consumption reduction with its subversive working principle and excellent performance, leading a new direction of efficient, intelligent and green grinding.

New Dimension of Grinding Mill Maximization:

From Scale Expansion to Efficiency and Intensification Revolution

Traditional grinding mill maximization mainly improves processing capacity by increasing cylinder size, but it also brings a series of complex challenges such as manufacturing, transportation, infrastructure construction and energy consumption control. However, the connotation of the new generation of maximization technology has undergone profound changes, which pursues higher processing efficiency and lower comprehensive cost in a more compact space.

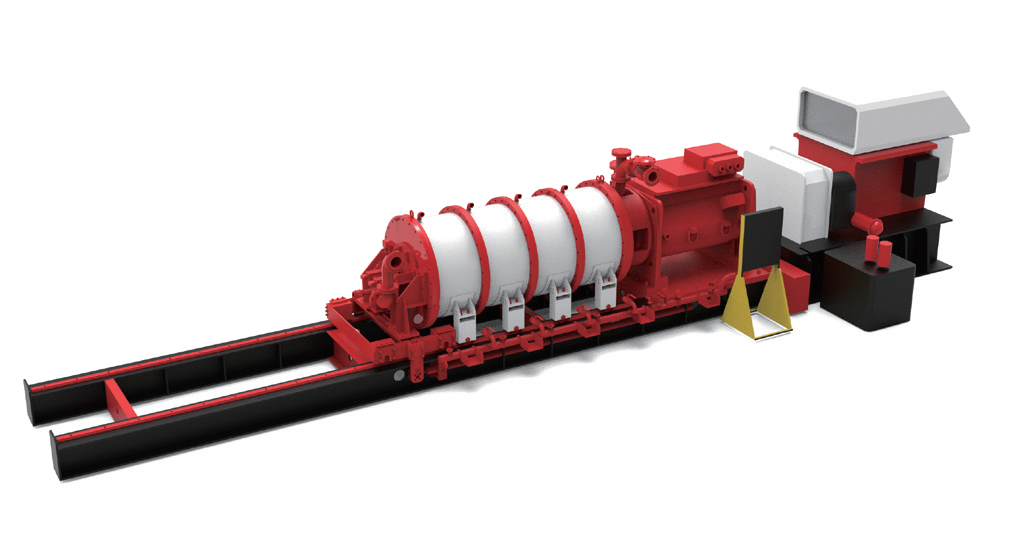

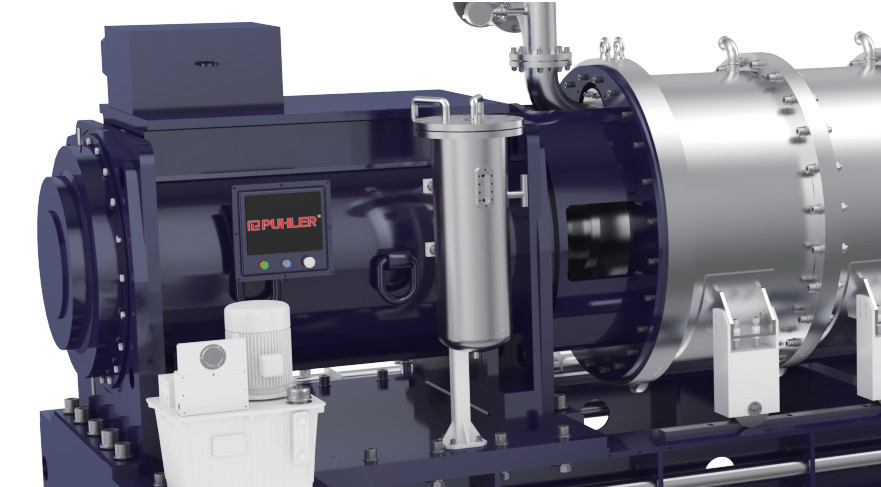

Puhler Nano's super-large ISAMILL® is an outstanding representative of this concept. Its maximization is not a simple geometric enlargement, but the large-scale application of high-efficiency stirred mill technology. Compared with traditional large ball mills, while achieving huge processing capacity (with a volume of up to 50,000 liters), it demonstrates unique intensive advantages:

1. Space and Infrastructure Revolution

With the same processing capacity, the cylinder volume of ISAMILL® is less than 20% of that of traditional ball mills. The equipment adopts a horizontal structure with controllable overall height, which greatly reduces the requirements for plant height and area, and significantly saves infrastructure investment.

2.Extremely Simplified Process

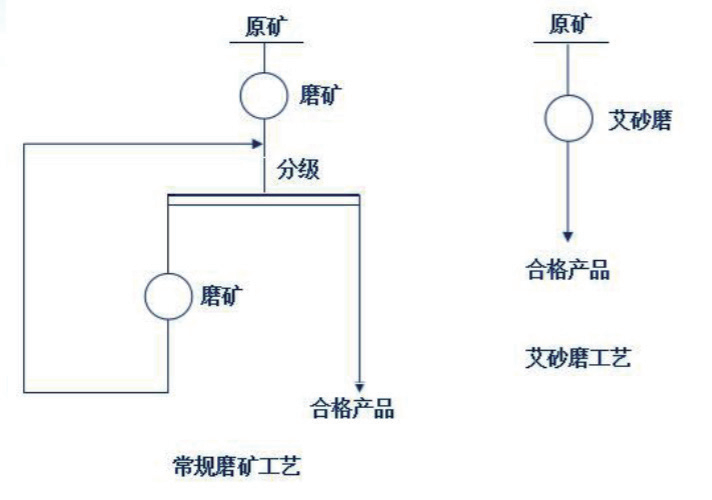

Adopting internal centrifugal classification and open-circuit grinding design, the equipment does not require supporting complex external classification equipment (such as cyclone groups), which simplifies the process layout and reduces the investment in auxiliary equipment and maintenance points.

3. High-Efficiency Transmission and Power Density

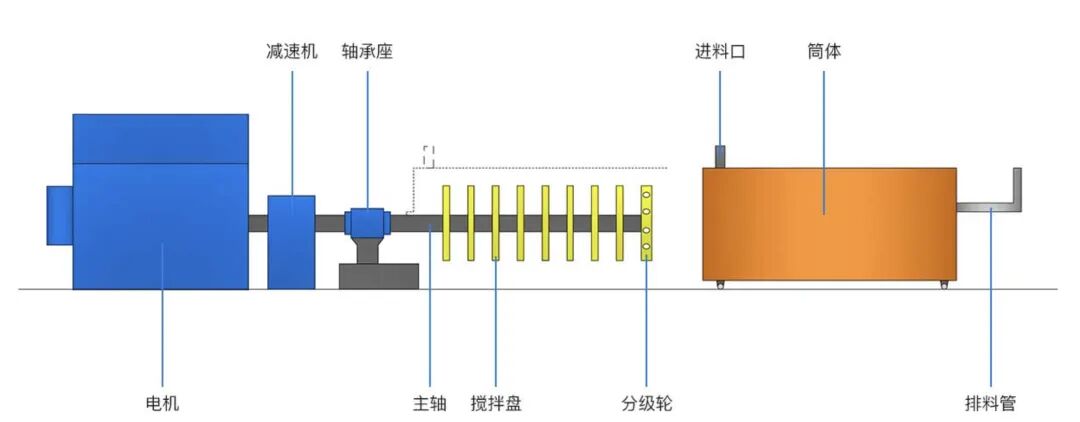

Driven by the main shaft, the stirring disc rotates at high speed with an outer circle linear speed of up to 23m/s and a power density of up to 300kW/m³, far exceeding that of traditional ball mills (20-30kW/m³). This means that higher energy is concentrated in a smaller space for effective grinding (energy utilization rate over 80%) rather than ineffective cylinder rotation, which is the foundation for its maximization while maintaining high efficiency.

New Breakthroughs in Energy-Saving Technology:

Systematic Energy Reduction Beyond Traditional Paths

Energy conservation is an eternal theme in the development of grinding technology. In addition to peripheral measures such as pre-crushing and process optimization, the energy efficiency revolution of the grinding mill itself is more critical. Puhler Nano's super-large ISAMILL® has achieved integrated innovation in energy-saving technology from multiple dimensions, including working principle, medium application, and process control.

1. Energy Conservation by Core Principle: Selective Grinding and Avoidance of Overgrinding

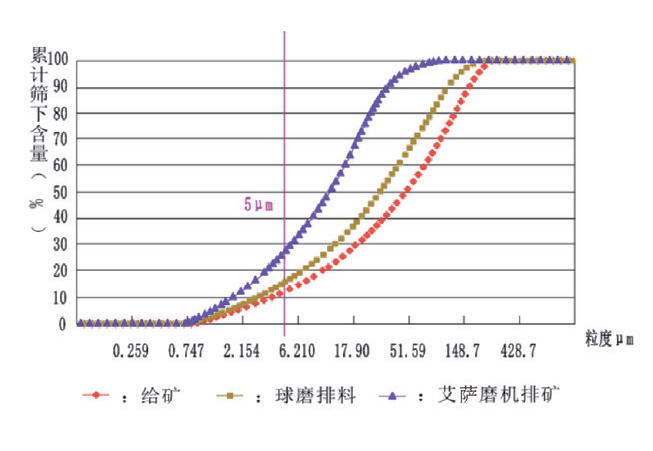

Traditional ball mills are prone to overgrinding and undergrinding, resulting in energy waste. Based on the selective grinding principle of "large media grinding large particles and small media grinding small particles", the ISAMILL® is designed with multiple independent grinding zones inside. Cooperated with high-speed stirring, mineral particles are subjected to precise shearing force from small-sized ceramic media of 2-6mm, achieving products with narrow particle size distribution, avoiding useless work, and directly improving the effective energy utilization rate.

2. Application of Ultra-High Efficiency Media: Large Surface Area Brought by Small Size

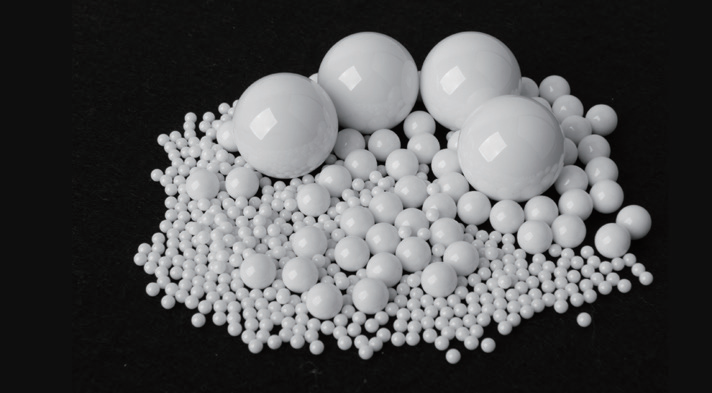

Grinding efficiency is directly related to the surface area of the media. Compared with the 50mm steel balls commonly used in ball mills, the 3mm ceramic media adopted by the ISAMILL® increases the surface area of the media per unit volume by more than 20 times. This means that under the same energy input, the probability of grinding interaction between mineral particles and media increases exponentially, making its grinding efficiency 60% higher than that of traditional ball mills and the comprehensive energy saving up to more than 40%.

3. Intelligent Control and Operation Optimization

Equipped with an intelligent control system, the equipment can real-time optimize the stirrer speed through frequency conversion speed regulation according to the ore feeding conditions and product particle size requirements, ensuring the stability of grinding product quality and enabling the equipment to always operate at the optimal energy efficiency point. This adaptive control is the key to continuous energy conservation.

4. Iron-Free Pollution and Subsequent Energy Conservation

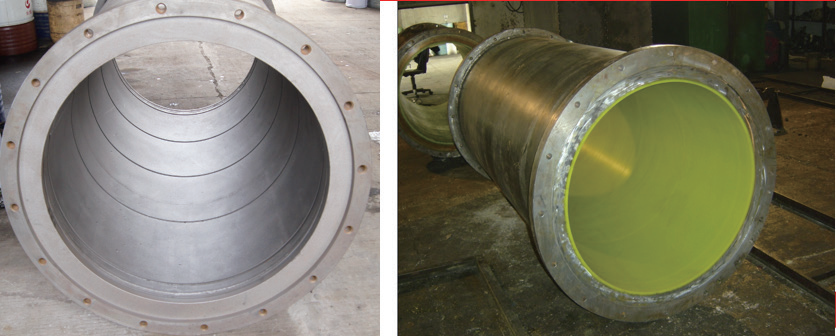

The cylinder, stirring disc and main shaft wrapped with full rubber lining or rubber-covered wear-resistant PU layer, combined with ceramic media, realize iron-free pollution throughout the process. This not only improves the subsequent flotation environment and increases the concentrate grade and recovery rate, but also avoids reagent waste and reduction of separation efficiency caused by iron pollution from the perspective of the whole process, bringing indirect energy conservation and efficiency improvement.

Conclusion

As the "heart" of a concentrator, the technological progress of the grinding mill directly determines the vitality and efficiency of the entire process. The trend toward large-scale grinding mills and energy conservation has evolved from a single equipment innovation to a development direction encompassing intelligence, high efficiency, and green energy conservation.

Puhler Nano's super-large ISAMILL® redefines the standards for large, high-efficiency ultra-fine grinding equipment through its subversive working principle, outstanding energy-saving indicators, intensive design concept, and intelligent control methods. It is not only a masterpiece of China's high-end equipment breaking the monopoly but also a key tool for global concentrators to achieve quality improvement, cost reduction, efficiency enhancement, and green development in the future.
